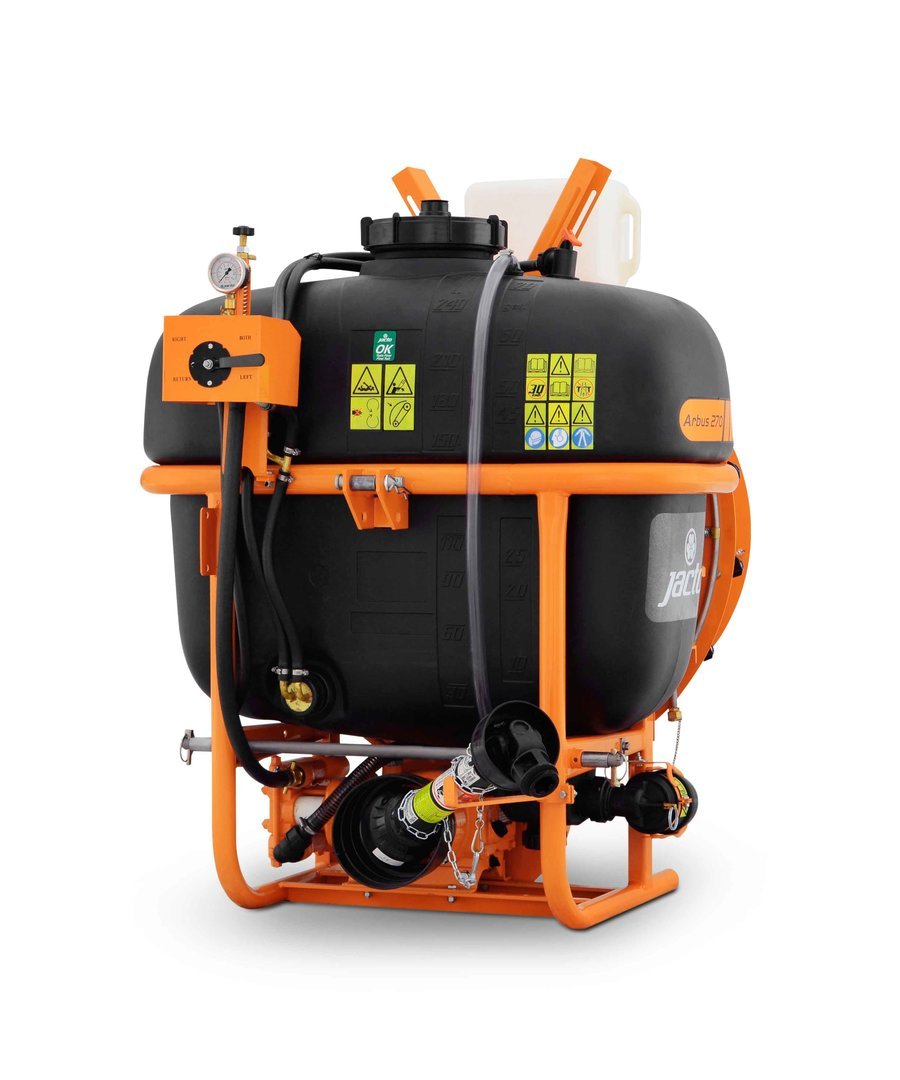

A 270
Jacto's Arbus 270 has approximately 20% more capacity and fan performance over our smaller A200 and will give you excellent coverage at a very competitive price. It's components are light and chemical resistant; a thick wall high density polyethylene tank, stainless steel nozzle branches, flip over nozzle holders and ceramic nozzles, a single three way control valve with regulator, bypass with venturi agitation and Jacto ceramic cylinder piston pump are just some of the standard features.
It can be mounted on compact tractors as small as 22 HP to spray a wide variety of crops such as; blueberries, apples, pears, cherries, grapes, plums, vegetable crops, nursery stock, nut trees and Christmas trees.
360° Tour



Features
Features
•70 gallon poly tank
•24 inch diameter fan
•Jacto JP50 piston pump – 13 gpm @ up to 300 psi
•Suction filter with shutoff and washable 60 mesh element
•Manual spray controls standard
•Chemical container rinse system
•4 gallon freshwater hand wash/eye wash tank
•Plumbed for optional hand spray guns
•Fan disconnect, important for continuious agitation when travelling to spray site
•Hydraulic agitation
•10 double flip-over nozzle holders with ceramic nozzles and nozzle screens
•Empty weight – 374 lbs
•Recommended tractor – 22 HP and above
•Optional electric valve kit #ELKIT2A

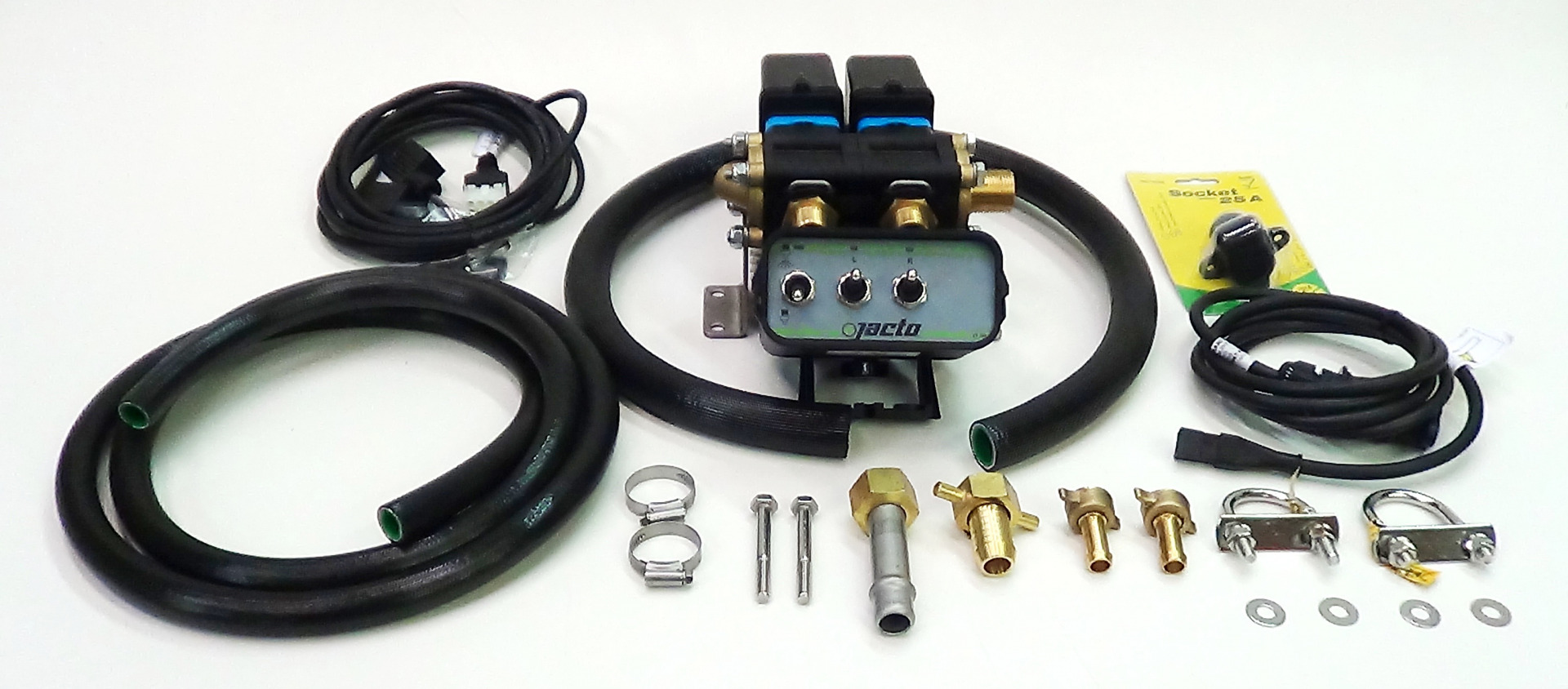

Optional Electric on/off Control Valves
This kit consists of two high pressure valves, one for each nozzle branch, in cab controller and all the hardware for installation. For operators with cab tractors this optional kit allows for easy operation of the sprayer without having to open the cab window.
Technical specifications
DIMENSIONS
Length x width x height
39 x 41 x 45 InchesWeight
399 Lbs
TANK
Capacity
70 GallonsMaterial
PolyethyleneAgitator
Hydraulic with venturi
Fresh Water tank
Capacity
4 GallonsMaterial
Polyethylene
PUMP
Model
JP-50Pumping capacity
13 gpmMaximum working pressure
300 psi
CHEMICAL FILTER
Model
FVS 100Mesh
60 mesh
FAN
Model
24 InchesRotation
2,000 rpmAir speed
83 mphAir volume
14,493 cfmFan Power Consumption
8.7 hp
ADDITIONAL SPECIFICATIONS
Agitation
Hydraulic With VenturiMaximum Power Consumption
12 hpRecommended Working Speed
1 to 4 mphMinimum Recommended Tractor
22 hp and above
