A 2000 Super Export EL

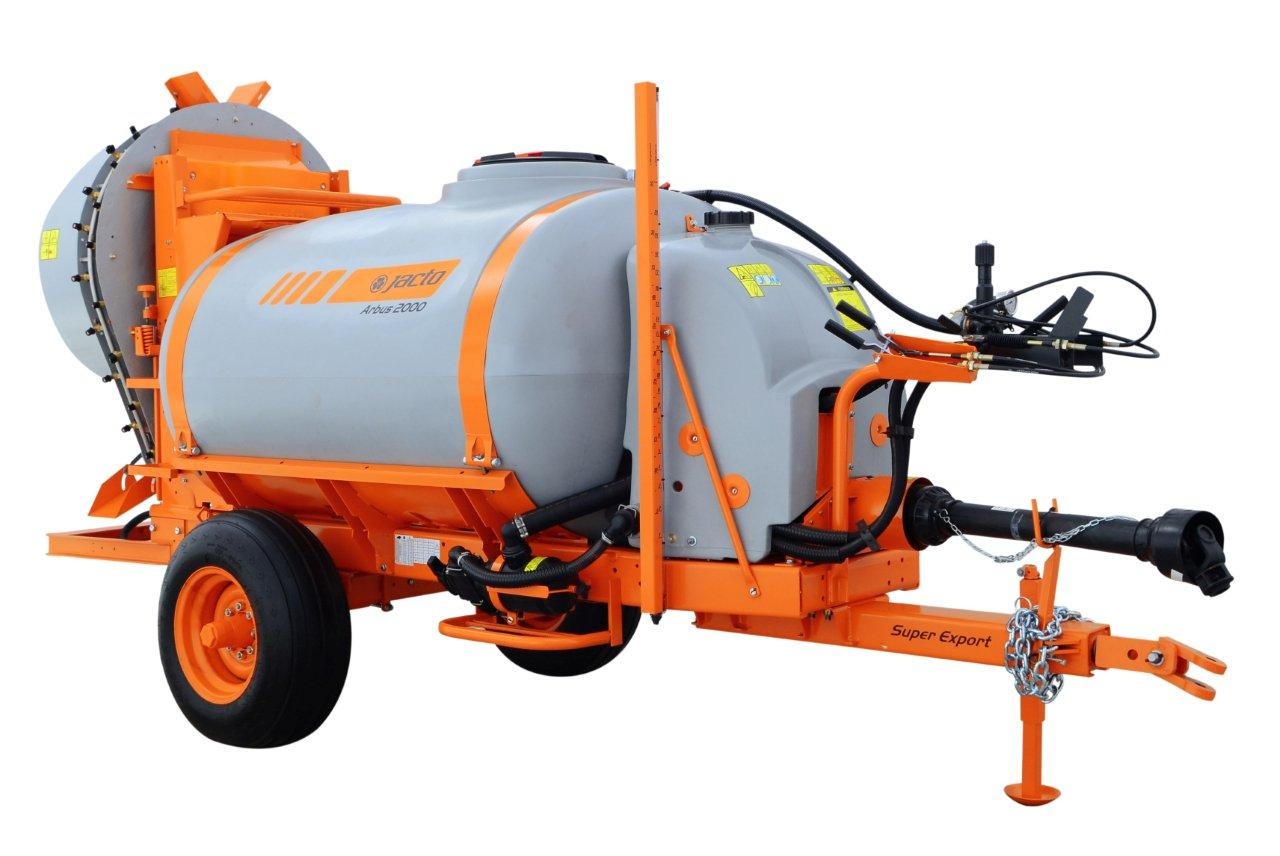

Jacto's Arbus 2000 Super Export EL is equipped with our mid-mount 33" two-port fan. The center of the fan is mounted approximately 66" from the ground, moving the air flow and adjustable nozzles closer to the crop canopy for increased spray deposition. Ideal when used in fruit and nut orchards, citrus groves and tall tree farms.
The Super Export EL features a 550 gallon high density poly tank, stainless chemical circuit tubing, 18 adjustable double flip over anti-drip nozzle holders with 36 ceramic nozzles, Jacto 50 GPM high pressure ceramic cylinder piston pump, CV-PTO shaft for tight turns without needed a heavy specialty hitch, adjustable height axle, chemical, circuit and freshwater rinse tanks and 11L-15 flotation tires.
The Super Export EL also comes standard with electric spray valves with an in-cab controller combined with only needing an 80 hp or larger tractor, the Super Export provides excellent value for growers with large groves and orchards.
360° Tour
Features
FEATURES
• 550 gallon poly tank, trailer mounted
• 11L-15 10-ply tires
• 33 inch diameter – 2 port fan, mid-mount standard
• Jacto JP190 ceramic cylinder piston pump – 50 gpm @ up to 300 psi
• 18 anti-drip adjustable flip-over nozzle holders with 36 ceramic nozzles
• CV PTO shaft for tight turns
• Electric spray valves with in-cab controller
• Adjustable axle height
• Multi blade mechanical and hydraulic agitation
• In-line dual stage washable filter
• Chemical container, 23 gallon chemical circuit and fresh-water rinse systems
• Plumbed for optional hand guns
• Recommended tractor – 80 HP and above
Optional Spray Handgun with wand
You can add an optional handgun and spray hose for use with your A2000 Super Export EL in manual mode. You will need the following parts to complete a handgun installation. Handgun with wand #002203F, adapter from handgun to 1/2" hose #006330 and quick connect fitting with o-ring from hose to machine #636407 + 440982. 1/2" hose sold separately.
Technical specifications
Crop
Fruits
Area size
Up to 500 ha
Over 500 ha
FAN
Model
33 inches, mid mountRotation
2,100 rpmAir speed
78 mphAir volume
32,640 cfmFan Power Consumption
31 hp
TANK
Capacity
550 gallonMaterial
PolyethyleneAgitation
Multi blade mechanical and bypass agitation
PUMP
Model
Jacto JP-190 Piston PumpCapacity
50 gpmMaximum pressure
300 psi
FILTER
Model
FVS-200Mesh
24/40, dual element
DIMENSIONS
Length
175 inchesWidth
70 inchesHeight
89 inchesAxle Track Width
55 to 61 inches
WEIGHT
Net Weight
2315 lbs
ADDITIONAL TECHNICAL INFORMATION
Maximum PTO Speed
540 rpmMaximum Power Consumption
43 hpRecommended Tractor Size
80 hp and aboveRecommended Working Speed
1 to 4 mph
