A 2000 Valencia 190 EL

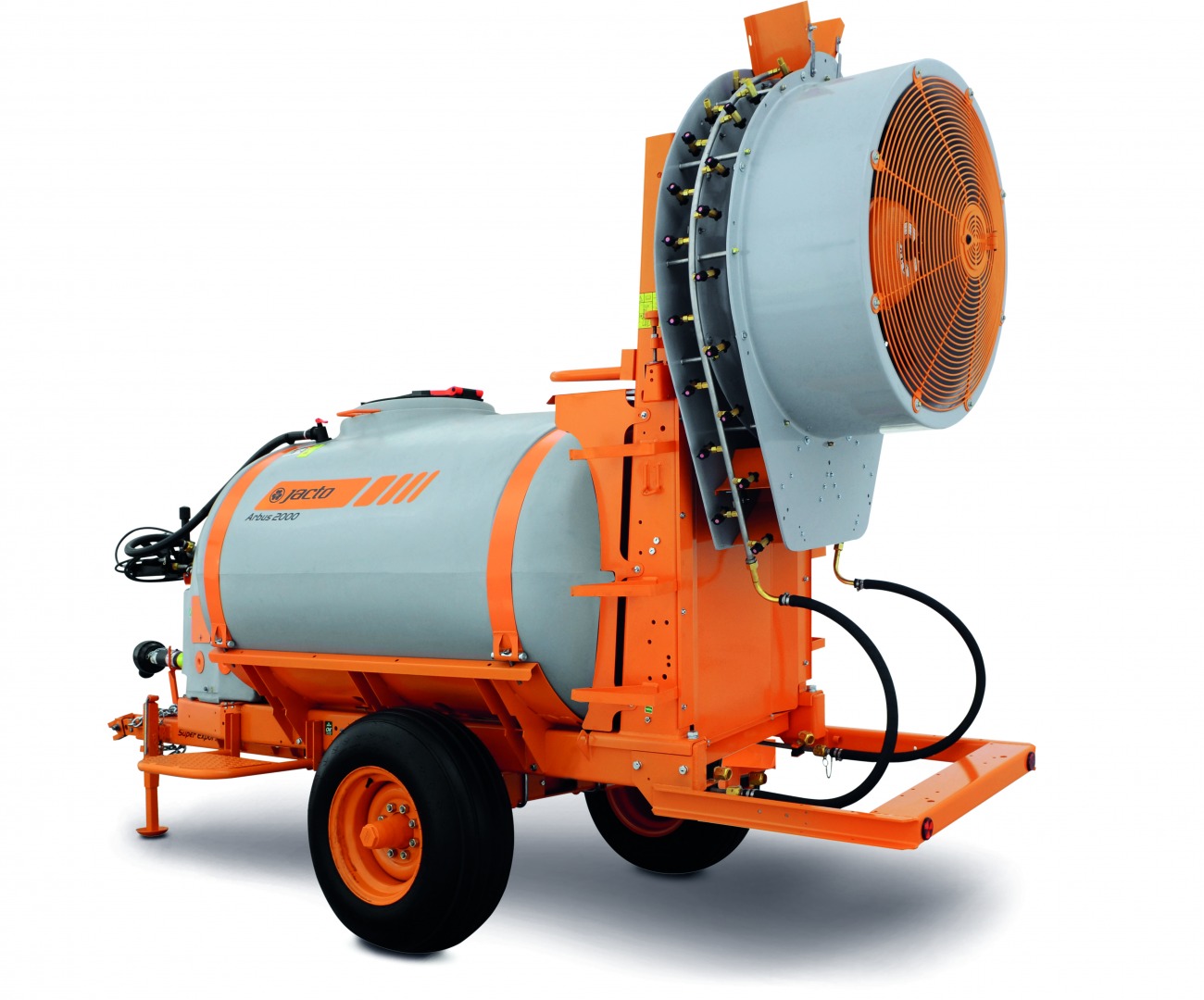

Jacto's Arbus 2000 Valencia 190EL airblast sprayer was specifically designed to meet the demands of large citrus groves, using our high-mount 33" two port fan in an efficient and economical manner to penetrate the densest canopies. The center of the fan is 81" from the ground and moves the air flow and nozzles closer to the overall plant canopy and improves spray deposition.
The A2000 Valencia uses the same high quality Jacto components as the rest of our Arbus models including, a high density poly tank, Jacto 50 GPM high pressure ceramic cylinder piston pump, 36 adjustable anti-drip nozzle holders with 72 ceramic nozzles, wide angle CV PTO shaft which eliminates the need for a heavy specialty hitch, high output 33" two port fan with disconnect , electric valves with in-cab spray controls and flotation tires.
Besides citrus, it has proven to be an excellent sprayer for use in nut groves and other tall growing crops up to 30 feet.
360° Tour
Features
FEATURES
• 550 gallon high density poly tank, trailer mounted
• 33 inch diameter – 2 port fan, high-mount
• Jacto JP190 ceramic cylinder high pressure piston pump – 50 gpm @ up to 300 psi
• 36 Anti-drip, adjustable, flip-over nozzle holders per side with 72 ceramic nozzles
• Multi blade mechanical and hydraulic agitation
• Chemical container, 23 gallon fresh-water and chemical circuit rinse systems
• Dual stage washable filter with shutoff
• Adjustable axle height
• 11L-15 flotation tires
• Electric in-cab spray controls standard
• Plumbed for optional hand guns
• Recommended tractor – 80 HP and above
Optional Spray Handgun with wand
You can add an optional handgun and spray hose for use with your A2000 Valencia EL in manual mode. You will need the following parts to complete a handgun installation. Handgun with wand #002203F, adapter from handgun to 1/2" hose #006330 and quick connect fitting with o-ring from hose to machine #636407 + 440982. 1/2" hose sold separately.
Technical specifications
Crop
Fruits
Area size
Up to 500 ha
Over 500 ha
FAN
Model
33 inches, high mountRotation
2,100 rpmAir speed
78 mphAir volume
32,630 cfmFan Power consumption
31 hp
TANK
Capacity
550 gallonsMaterial
PolyethyleneAgitation
Multi blade mechanical and bypass agitation
PUMP
Model
Jacto JP-190 Piston PumpCapacity
50 gpmMaximum pressure
300 psi
FILTER
Model
FVS-200Mesh
24/40 dual element
DIMENSIONS
Length
175 inchesWidth
70 inchesHeight axle in high position
141 inches, 126 inches in low position
WEIGHT
Net Weight (Empty)
2,315 lbs
ADDITIONAL TECHNICAL SPECIFICATION
Maximum PTO Speed
540 rpmMaximum Power Consumption
51 hpRecommended Tractor Size
80 hp and aboveRecommended Working Speed
1 to 4 mph
