A 2000 Sapphire EL
Jacto's Arbus Sapphire 530 gallon trailed airblast sprayer offers incomparable performance in a wide variety of crops, such as highbush blueberries, apples, stone fruits, grapes, nuts, avocados, citrus and large nursery trees.

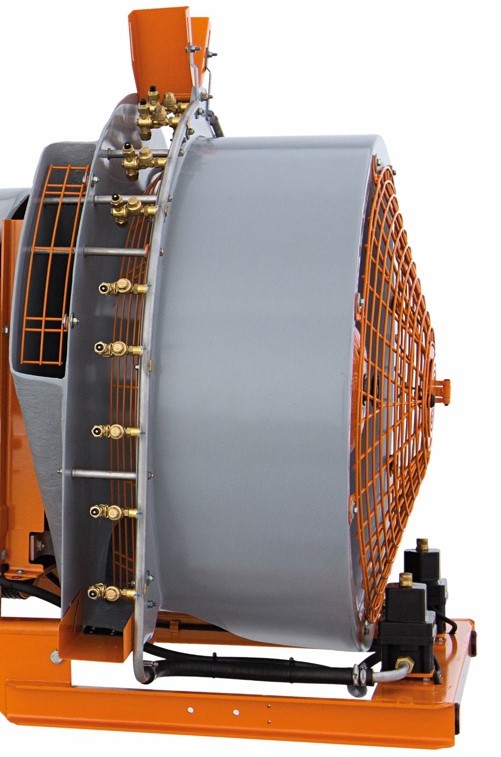

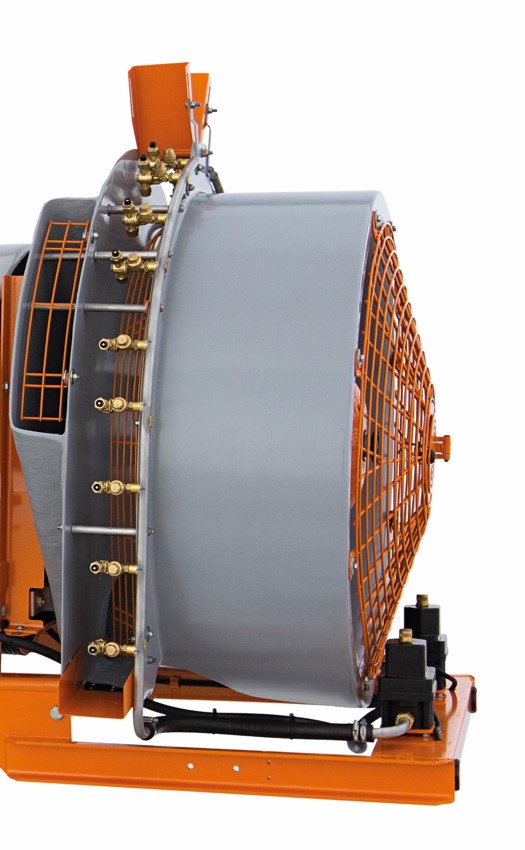

Jacto's 33" two port fan delivers almost 51,000 CFM of air volume at air speeds up to 78 MPH. Combining this high performance fan with Jacto's JP190 50 GPM ceramic cylinder high pressure piston pump gives you superior performance in spray deposition, to penetrate the densest canopies up to 25 feet plus.
With standard features that are options on most other sprayers, such as double flip over anti-drip nozzle holders with ceramic nozzles and electric on/off valves for spray control and in-cab controller, the Sapphire is easy on your pocketbook and the environment, while providing excellent coverage for eliminating diseases and pests.
A constant velocity wide angle PTO shaft is standard to allow for tighter turns without having to have a heavy turning hitch or consuming extra horsepower.
360° Tour
Features
FEATURES
• 530 gallon fiberglass tank, trailer mounted
• 11L-15 10-ply tires
• 33 inch diameter fan – 2 port fan low-mount
• Fan disconnect for ease of filling, mixing and when using a hand gun
• Jacto JP190 ceramic cylinder piston pump – 50 gpm @ up to 300 psi
• 18 Anti-Drip double flip-over nozzle holders and 36 ceramic nozzles
• Electric spray control valves with in-cab controller are standard
• Suction filter with shutoff and washable mesh elements
• Wide angle CV PTO shaft standard
• Adjustable axle height
• Multi blade mechanical and hydraulic agitation
• Chemical container and fresh-water rinse systems
• Recommended tractor – 80 HP and above

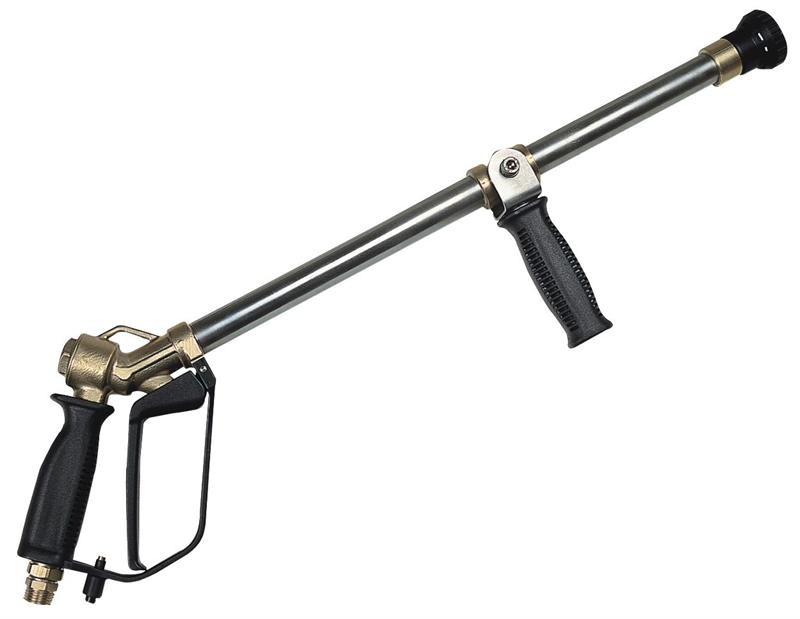

Optional Spray Handgun with wand
You can add an optional handgun and spray hose for use with your A2000 Sapphire EL in manual mode. You will need the following parts to complete a handgun installation. Handgun with wand #002203F, adapter from handgun to 1/2" hose #006330 and quick connect fitting with o-ring from hose to machine #636407 + 440982. 1/2" hose sold separately.
Technical specifications
Crop
Fruits
Area size
Up to 500 ha
Over 500 ha
FAN
Size
33 inchesRotation
2,050 rpmAir speed
78 mphAir volume
50,853 cfm
PUMP
Model
Jacto JP-190 Piston PumpCapacity
50 gpmPump Power consumption
10.8 hp at 300 psi
FILTER
Model
FVS-200Mesh
24/40 Dual mesh
DIMENSIONS
Length
175 inchesWidth
60 to 73 inches, adjustableHeight
80 inches in high axle positionAxle track width
55 to 61 inchesGround clearance
8 or 15 inches, two position axle height
WEIGHT
Net Weight (Empty)
1,543 lbs
ADDITIONAL TECHNICAL SPECIFICATIONS
PTO Speed
540 rpmMaximum Power Consumption
40 hpRecommended Tractor Size
80 hp and aboveRecommended Working Speed
1 to 4 mph
TANK
Capacity
530 gallonsMaterial
FiberglassAgitation
Multi blade mechanical and bypass agitation
